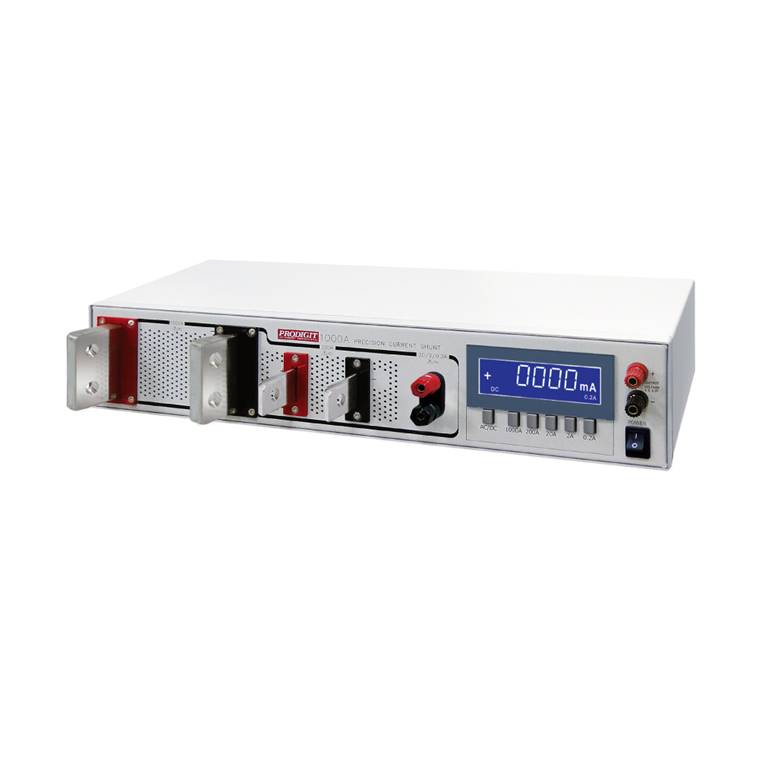

1000A Precision Current Shunt

1£gA~1000A
Lab Current Standard 1uA-1000A
Current Range AC & DC Current Shunt AC & DC Current Meter
Input terminals can be placed in the rear panel (option)

Description

• Model 1000A has five precision selectable Ultra stable Current Shunts which ranges from 0.0001 to 1£[. The Shunt T/C is less than 10ppm, and the internal current meter will measure from 1£gA to 1000Amps.
• The five shunts selector and internal 5 1/2 Digit AC & DC Current Meter displays the respective shunt current. Connect an external DVM into output (with 5 1/2 digit higher) will increase both resolution and current reading accuracy.
• Current range can be set and current value readback by optional interface.

Features

• 0.01% High Accuracy
• 5 1/2 Digit AC & DC Current Meter
• Built-in Over Current Protection
• Less than 10ppm / ∘C ( Range 1000A¡Gless than 50ppm ¢J)
• High Stability & Reliability
• Input terminals can be placed in the rear panel (option)
• Optional Interface : GPIB¡BRS232¡BUSB¡BLAN.

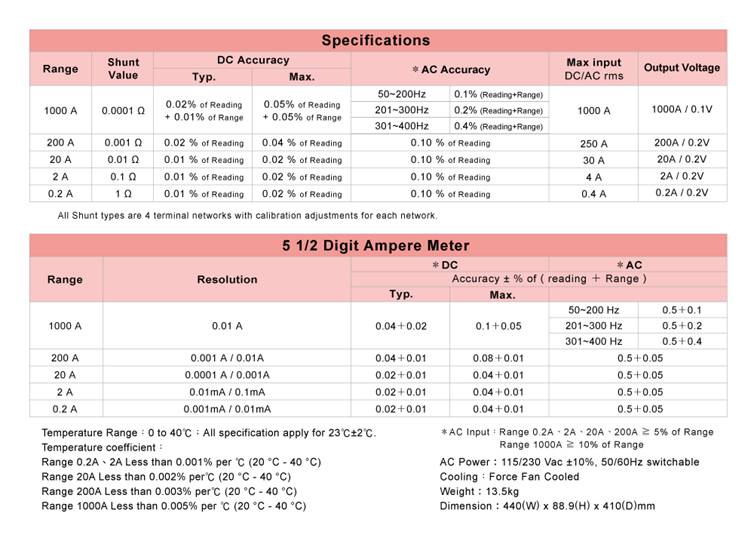

Specifications
